4.2 Device parameters configuration

After install the software, pls connect the multi-media player to the power ,connect with the same LAN with the computer which have been install the software ,pls make sure the device and computer is in the same network segment ,then can obtain the device parameters by the software.

4.2.1 Use WEB mode from the YQ software

1. Open LedshowYQ software ,click “setup”-- “set screen parameters”-- “add screen”-- “list of online controllers”--and select the screens you want to add, then click “add”

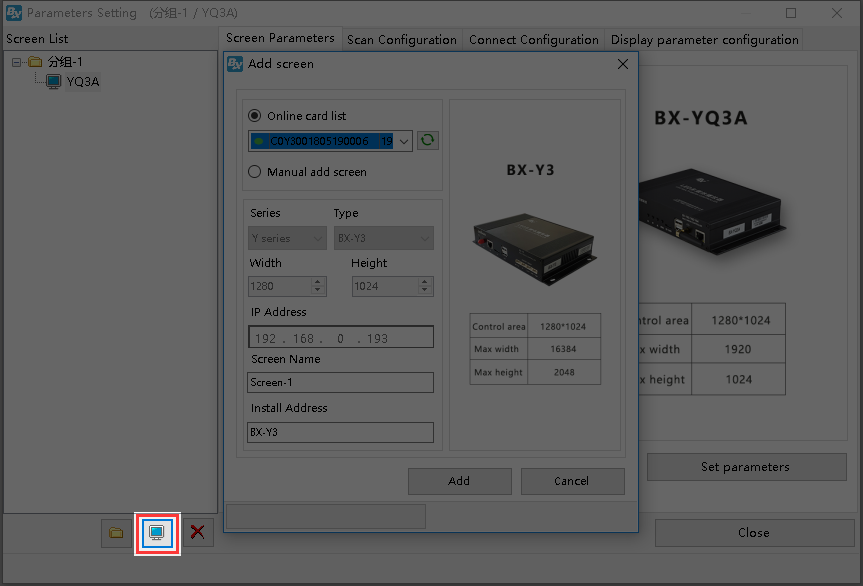

picture 4.2- 1 add screen

2. after add the screen like in the picture 4.2-2,click the IP configuration ,input the password 888

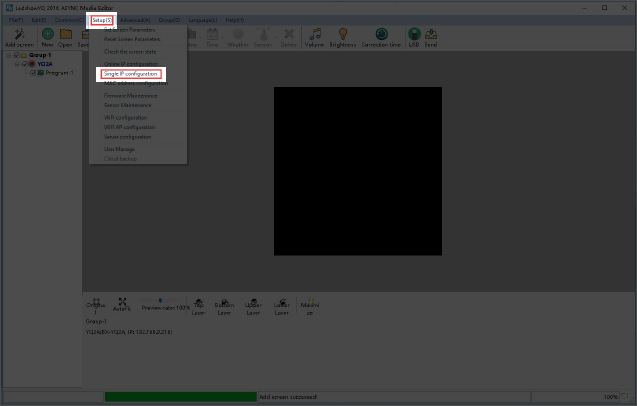

picture 4.2- 2

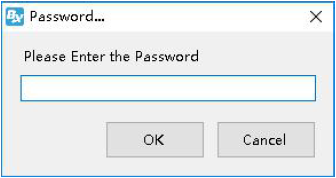

picture 4.2- 3 input password

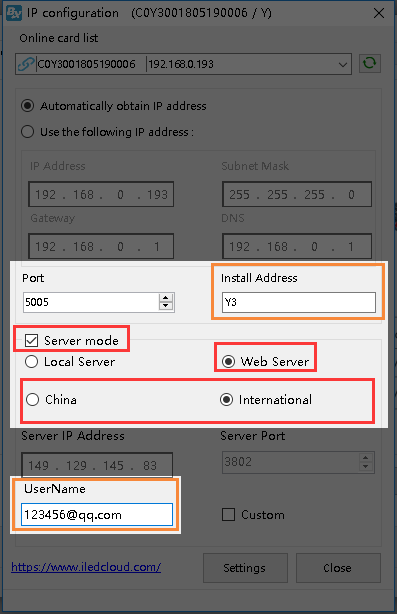

3. In IP configuration page of controller, users can modify the device IP (suggest you to use “Automatically obtain IP address”) and select the “server configuration” select WEB server ,overseas customers please choose “International station”, if user write “user name”(the mail or mobile phone number when used to log in)and the ”installing Address”( customized by screen name)like in picture 4.2-4 then click” settings”(PS: Please make sure current that LAN only connect with one device when use the single IP setting),when this controller connect with network, the controller will automatically add the corresponding user name ,no need manual setting.

picture 4.2- 4

4.2.2 Use WEB mode from the TW software

1. Open the TW software, click setup to set screen parameters

picture 4.2- 5

2. Select the controller model ,communication mode should be web server

picture 4.2- 6

3. Click WEB,write the IP information international users please select “International”,and then click “setup”.( the LAN only can connect with one device when setup)

picture 4.2- 7

4.2.3 Obtain controller ID or bar code

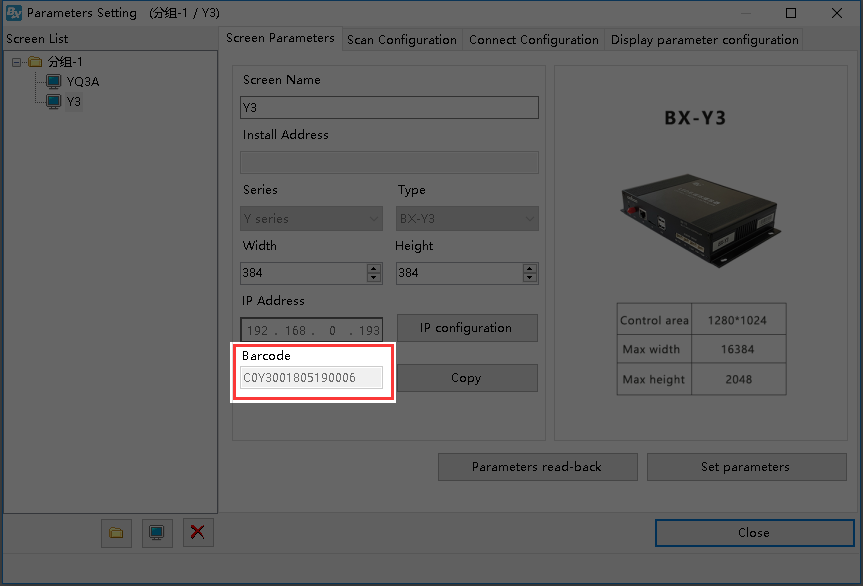

In the YQ software--setup the screen parameters ,users can obtain the bar code, Like in the picture 4.2-8. On the side of controller also have the bar code ,if user can obtain the ID and bar code by YQ software ,then can priority to use the bar code when add screen .if user only can obtain the ID, then need input the ID when add screen.

picture 4.2- 8 obtain PID

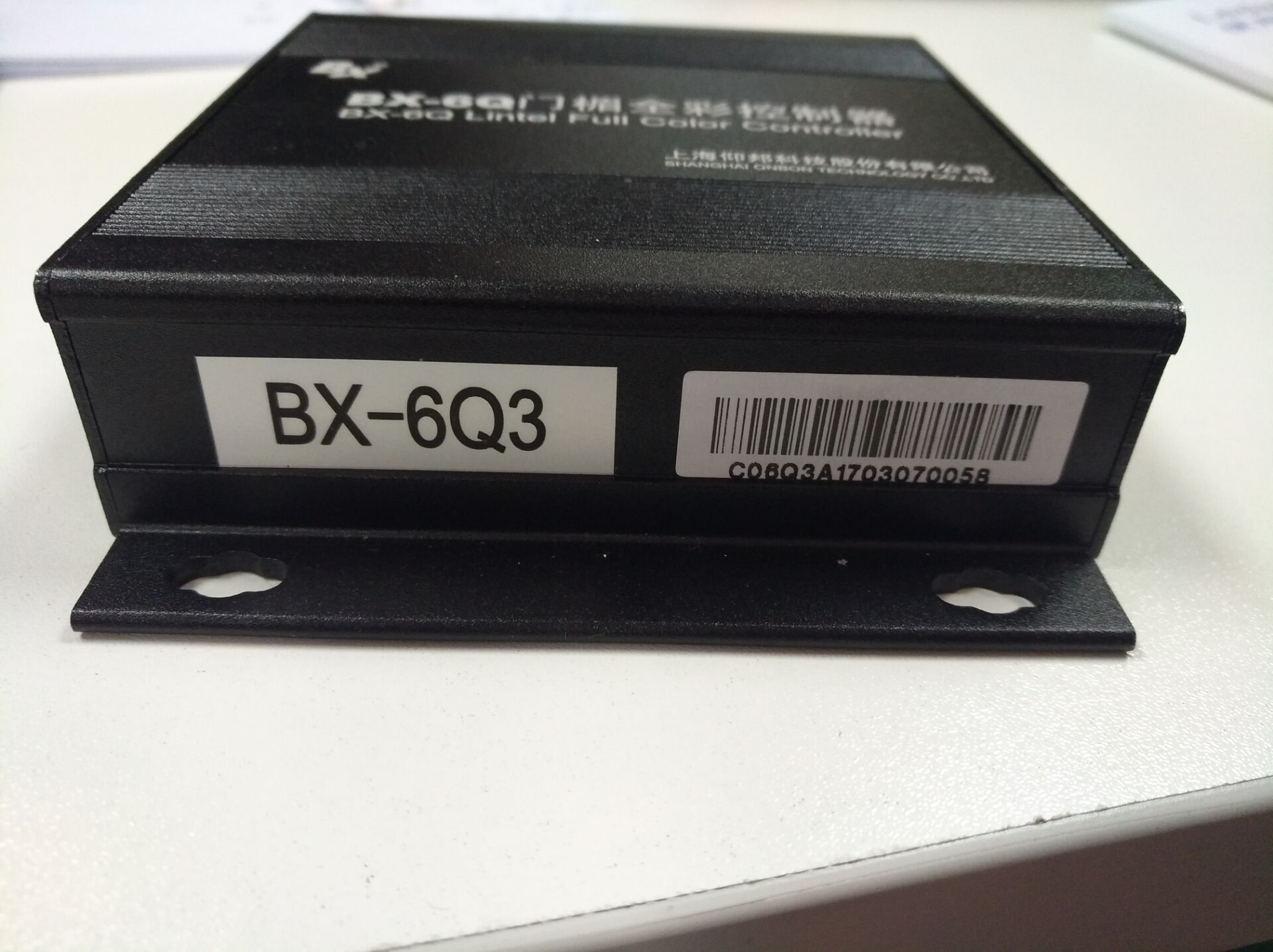

6 series controller bar code can check from picture 4.2- 9

picture 4.2- 9 6 series controller bar code
