Display setup

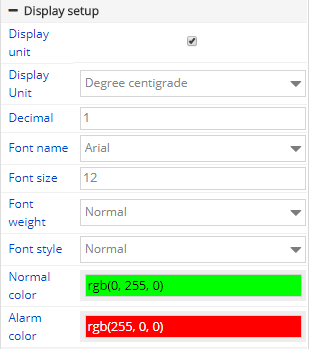

Users can set the display unit, the color of the threshold value mode, and display the decimal digits, as shown in picture 6.9-7(note: the unit type can only be set as temperature units, effectively reserve refers to the decimal places, such as 1, the decimal is 0.1)finally value displayed on the screen must equal to sensor measurement value + revised * 0.1 = ^ valid number reserved bit, revised can be positive or negative integers, valid number reserved bit integer value is greater or equal to 0.

picture 6.9- 7
